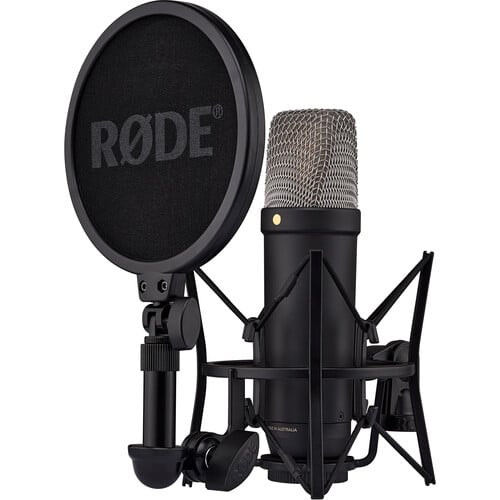

RØDE NT1 5th Generation

Description

Studio Microphone Technical Specifications

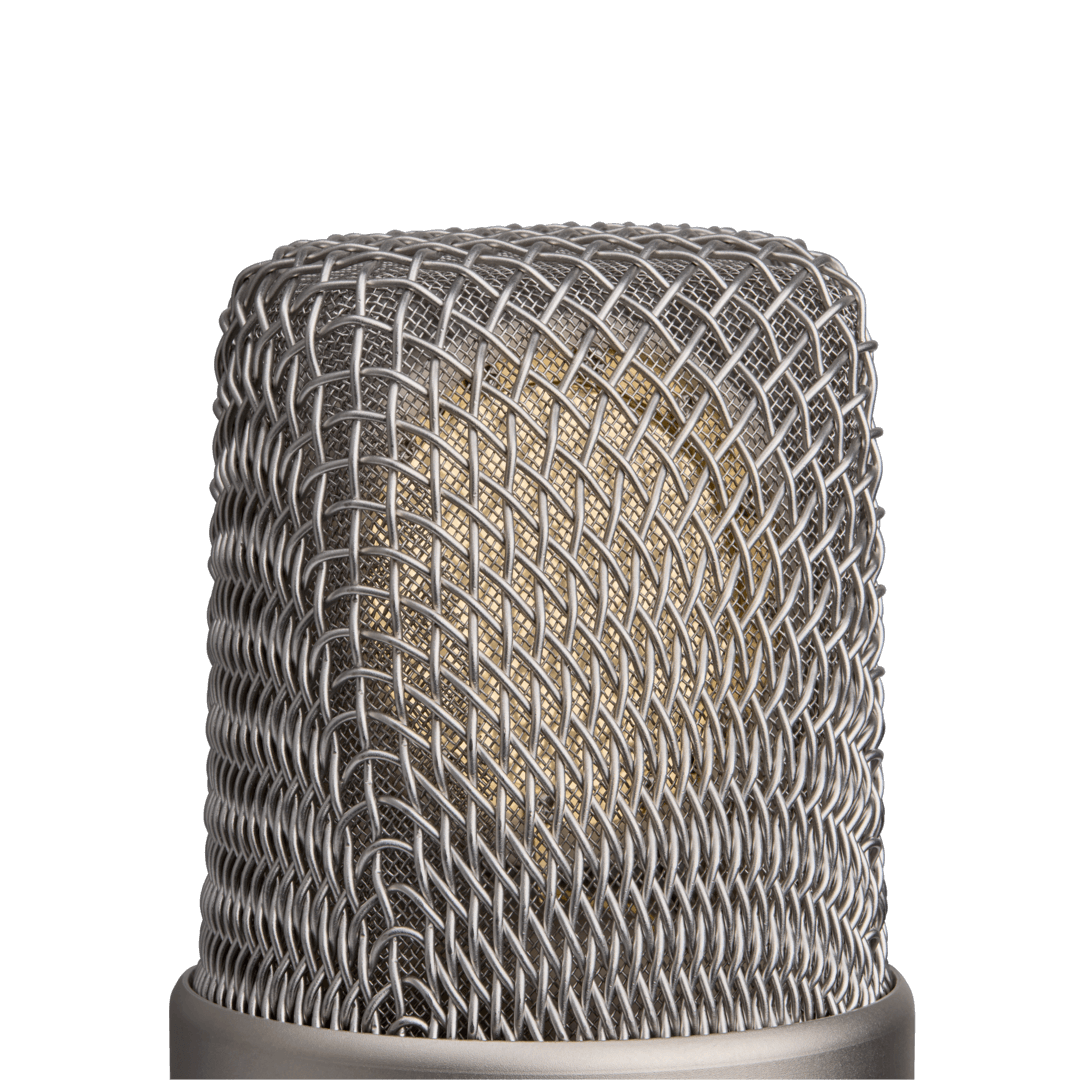

• Capsule: Large-diaphragm (1-inch) gold-sputtered condenser capsule

• Polar Pattern: Cardioid

• Active Electronics: JFET impedance converter with bipolar output buffer

• Frequency Range: 20Hz – 20kHz

• Maximum SPL (dB): 142dB SPL

• Equivalent Noise Level (A-Weighted): 4dBA (the world’s quietest studio condenser microphone)

• Sensitivity: -32 dB re 1 Volt/Pascal (25 mV @ 94 dB SPL) +/- 2 dB @ 1 kHz

• Power Requirements:

  • XLR (Analog): P48 (48V Phantom Power)

  • USB (Digital): 5V (via USB)

• Connectivity: RØDE’s patent-pending Dual Connect output (XLR and USB-C)

• Digital Audio Specifications (USB Only):

  • Bit Depth: 24-bit / 32-bit float

  • Sample Rate (kHz): 48 / 96 / 192 kHz

• Dimensions:

  • Length: 189 mm

  • Diameter: 52 mm

• Weight: 308 g
